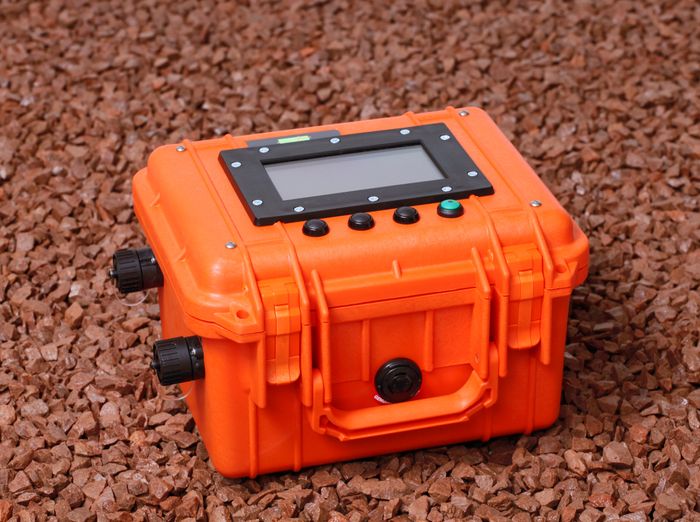

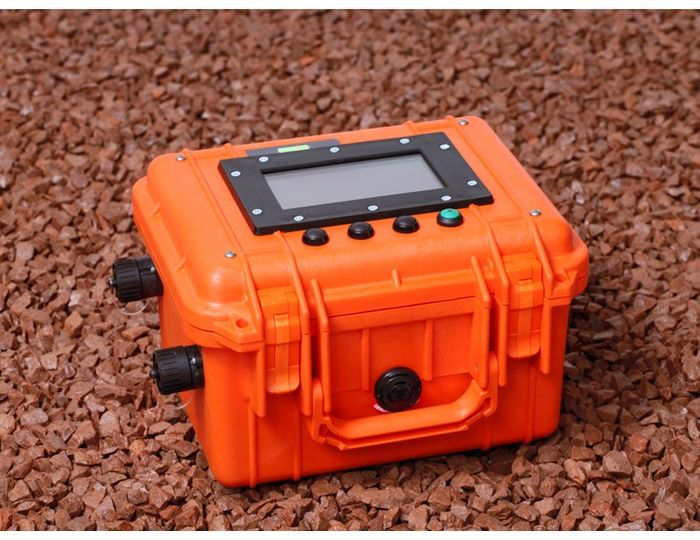

V9000 Seismograph

• 40 character x 16 line alphanumeric LCD with graphical representation and backlight

• Trigger mode for blast monitoring
• Continuous mode for piling, rail and road traffic monitoring
• Data stored for all 3 axes, down to 1 m/s intervals
• Frequency plot and resultant graph
• Features:    ▪ Triggering from 0.1 mm/s

                              ▪ Auto range from 0.1 mm/s to 200 mm/s

                              ▪ Auto record length from 2 to 15 seconds (in trigger mode)

• Can trigger and record PPV, acceleration and displacement parameters
• Monitor in trigger and continuous mode (twin channel option)
• Air overpressure from 100 dB to 152 dB Linear
• Memory for approximately 500 trigger events or 21 days continuous recording at 1 second intervals
• Built in 7day timer function and sleep mode (extends battery life)
• Instant readout and review of memory event results on LCD
• Optional internal modem for internet based remote operation and downloading of vibration / frequency data
• Optional SMS alert functions – low battery, low modem battery, memory full, Seismograph status, and high vibration alerts
• USB connectivity (plug and play – no set up required

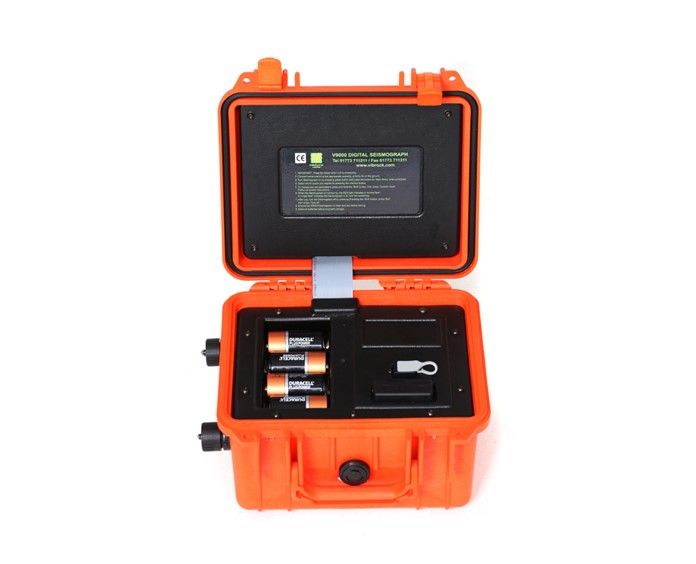

Power Source:                 Four Alkaline ‘D’ cells (optional external 12v or Mains supply)

Battery Life:                     Up to 30 days continuous monitoring (24 hours/day)

Dimensions:                     300mm x 250mm x 180mm

Weight:                             3 Kg

Operating Temperature:   -5°C to +50°C

Optional Modem Specifications:

Power Source:           Separate internal 12v battery gives up to 30 days remote monitoring (24 hours/day)

Battery charger:         Can be used to power the Seismograph and charge the internal modem battery simultaneously

GSM Functions:         Remote download of the Seismographs memory

                                   Remote operation of the Seismograph

                                   Watch the Seismograph monitoring in real time

                                   SMS alarm warnings (6 of)

                                   Programmable timed data upload

Accessories:             1 x tri-axial geophone pack

                                    1 x CD ROM containing Vibrock Software

                                    1 x instruction book

                                    1 x USB download lead

                                    1 x shoulder bag

                                    1 x calibration certificate

Options:                      Modem connectivity

                                     Text alerts (status and alarms)

                                     2^nd PPV Transducer

                                     VDV capability

                                     Air over pressure microphone

                                     Two stage audible / visual alarm

                                     GPRS co-ordinate logging for each vibration event
