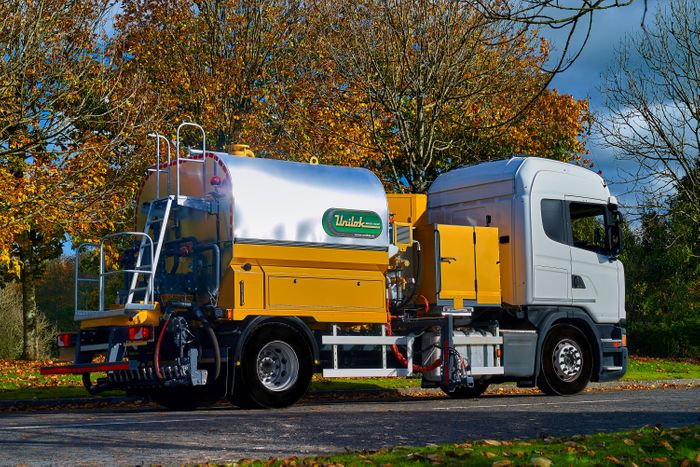

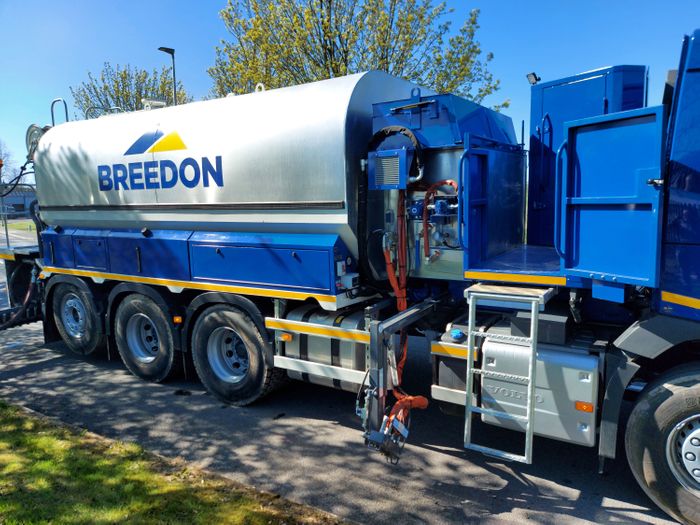

Tack / Bond Coater with Bitumen Joint Sealer
)
)
)
)
)
)
Bond coater tank Capacity: Options available from 2000L to 13000L litres.
Bitumen edge/joint sealer tank capacity: 500L
Spray bar options:
-
2.4m fixed width
-
Telescopic overall width 4.2m
-
Telescopic overall width 5m
In cab controls: Full cab controls with touch screen and proportional joysticks for one man operation.
Automatic heating: Oil burner heating with option of overnight heating.
Pumping: Positive displacement Bitumen pump with integral relief valve with output of up to 800 litres per minute is fitted.
Spraying: Spray bar fitted with slot jets at 150mm centres giving triple overlap of emulsion, jets automatically open/close as the spraying width varies and pressure is automatically controlled to remain constant.
Bond coater tank: Fabricated from mild steel to maximum section incorporating anti-surge baffles and heating flue. Insulated with 100mm dense rockwool matting and clad with Aluminium sheeting.

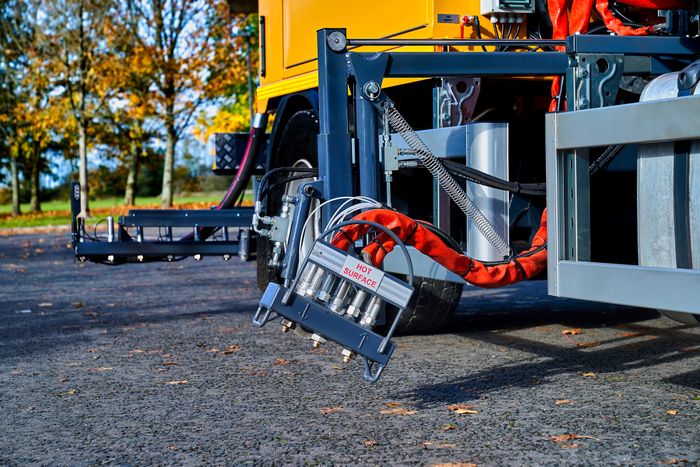

Joint / Edge sealer: A melting tank is immersed in a hot oil heating system with an in-tank heating grid and product agitator. The tank is insulated and clad. Joint – Edge sealing is by triple spray jet assembly and controlled from within the drivers cab.
All incorporated safety systems meet the highest European Safety standards.
