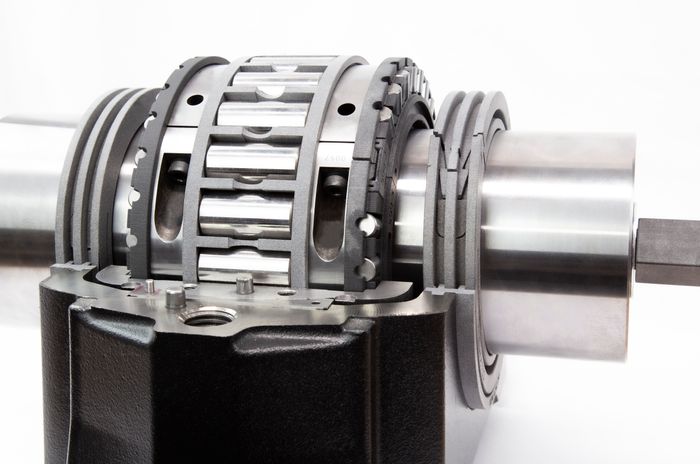

SN/SD/SAF Split Roller Bearings
){kind=icon}
)
)
){kind=icon}
)
)

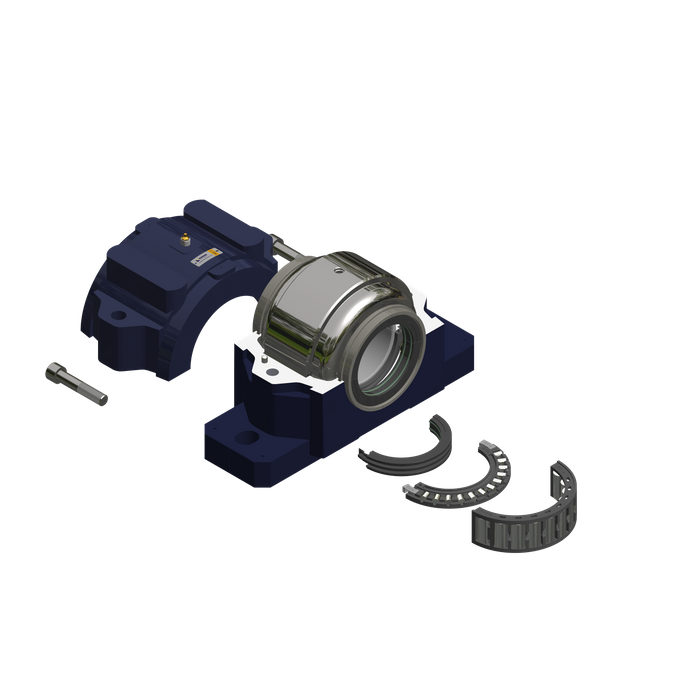

Replace a solid spherical roller bearing with a split bearing:
Reuse existing housing and assemble the bearing radially around the shaft without disturbing ancillary equipment to reduce installation time by up to 90%.
Up to 35% more load carrying capacity: More rollers that are larger in size compared to competitors and separate axial thrust bearings significantly increase load carrying capacity.
Up to 25% longer operational life in high load applications:
Significantly better load carrying capacity and 3D printed composite cages that prevent metal ingress and improve lubrication flow.
Extends the life of worn shafts: Patented triple labyrinth extended seal for extending the life of worn shafts and reducing downtime.
- 135 mm to 300 mm (5 3/16 in. to 12 in.) shaft diameters
- Replaces adapter-sleeve mounted bearings (eg CCK/W33 type)
- Incorporates additional sealing to protect bearing
- 2D drawings and 3S models available
