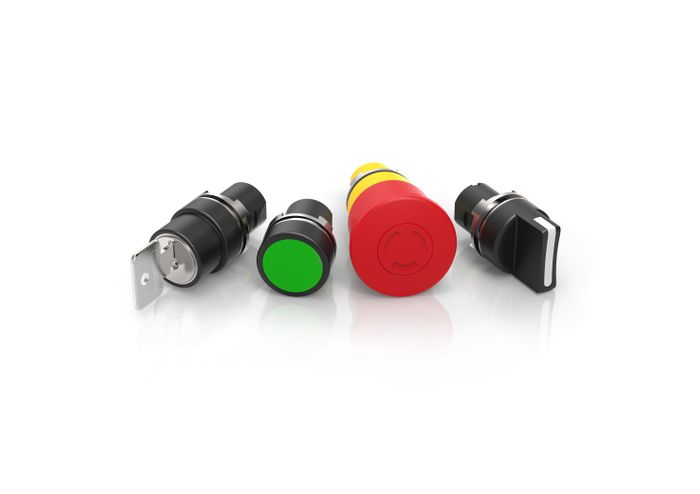

Series 46 EcoTouch Range

The Series 46 EcoTouch range features modular, easy-to-assemble switches, available in raised 22 mm or flush 30 mm mounting options. Designed to support a wide variety of switching functions, the range is sealed to at least IP65, with options up to IP69K using protective covers.

Key Features

• Cost-effective, modular design
• Easy assembly and wiring
• Available in 22 mm (raised) or 30 mm (flush) mounting
• IP65 protection as standard
• Up to IP69K with protection caps (depending on actuator)

Functions

• Push button and illuminated push button
• Double push button and mushroom-head button
• Selector and illuminated selector switches
• Keylock switch and indicators
• Stop and emergency stop switches

Technical Options

• Mounting cut-outs: Ø 22 mm and Ø 30 mm
• Terminals: Screw or plug-in (with accessory)

Applications

• Machinery and industrial equipment
• Factory and process automation
• Panel building
• Lifting and handling systems
• HVAC systems
