POSITAL Explosion Proof Encoders ATEX

Explosion Proof Absolute and Incremental Encoders

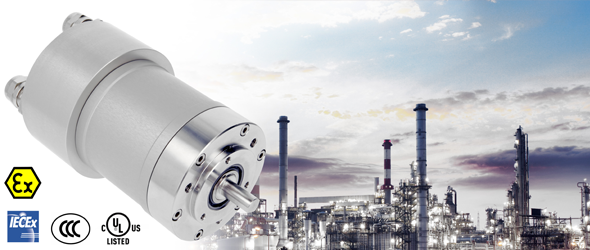

Explosion proof certified rotary encoders are designed to operate safely in atmospheres where there are potentially dangerous levels of explosive gases or dust. These devices are part of the IXARC family of magnetic and optical rotary sensors and are available in single- or multi-turn versions as well as programmable incremental encoders. Rugged, reliable, and highly accurate, these devices can be ordered with a wide range of mounting and coupling options that ensure that they can be installed in zones 1/2 and 21/22 As defined from the ATEX/IECEx/UL/CCC regulations.

Product Highlights

• Certified for Underground Mines (Group I) and Other Locations (Group II)
• Housing Material: Aluminum, Stainless Steel (316 AISI)
• IP protection up to IP69K
• Variety of communication interfaces
• No battery backup
• Certification with ATEX, IECEx, UL and CCC (planned to release soon)
• Ex-proof “d” Flameproof Enclosure (zone 1&21)
• Ex-proof „nA“ non sparking (zone 2&22)
• Different Mounting and Coupling Options Available
• Resolution up to 16 bit, Revolution >14 bit
• Programmable Incremental Encoder with Pulse Count up to 16 384 ppr
• Programmable SSI encoders

Explosion Proof Inclinometers

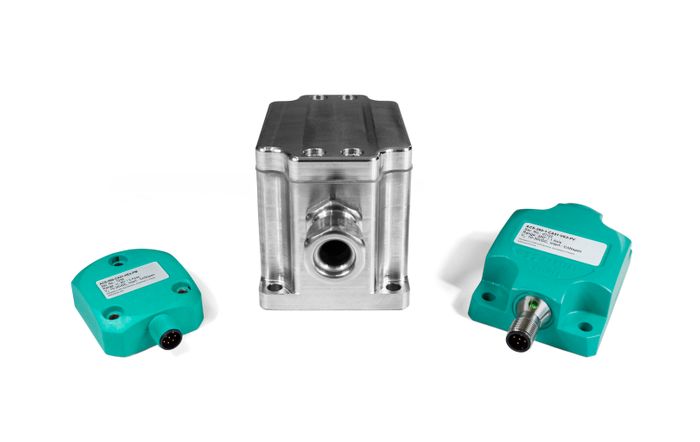

POSITAL has extended its TILTIX family of inclinometers (tilt sensors) to include explosion-proof models designed to operate safely in environments that contain potentially dangerous levels of explosive dust or gases. These devices have been certified in compliance with IECEx and ATEX directives and are suitable for use in underground mines, oil and gas facilities, agricultural applications, chemical plants, woodworking factories and milling operations.

• ATEX and IECEx Certified
• Zone 1/21 Underground Mining or Oil and Gas
• High Vibration and Shock Resistance
• ±80° (Dual Axis) or 360° (Single Axis)
• Analog, CANopen, J1939, Modbus RTU, SSI
• Rugged Aluminum and 316 Stainless Steel Housings
• Usage in Gas (2G) and Dust (2D) Hazardous Locations
• Accuracy up to ±0.1°

Large Variety

Like other TILTIX inclinometers, the new models are available in single (0-360°) or dual-axis (± 80°) versions and feature resolution as high as 0.01° and 0.1° accuracy. Available communications interfaces include J1939, CANopen, Modbus RTU, SSI, and analog output. Analog models can be programmed so that a predetermined range of mechanical motion is set span the full electrical output range. Rugged aluminum and 316 stainless steel housings are offered, with other materials available by special order.

These products have been certified to the following ATEX ratings:

Group I (mining):

• Ex I M2 Ex e mb I Mb

Group II (above ground operations):

• EX II 2G Ex e mb IIc TX Gb (explosive gases)

• EX II 1D Ex ta IIIC TX Da IP65 (flammable dust)

POSITAL also offers Encoders and Accessories for Hazardous Locations

ATEX Rated Absolute Encoders

Division 1 (Gases/Vapors/Mist) – An area in which an explosive mixture of the is likely to occur in normal operation occasionally.

Division 21 (Dusts/Powders) – An area in which an explosive mixture is likely to occur in normal operation occasionally.

Division 2 (Gases/Vapors) – An area in which an explosive mixture is not likely to occur in normal operation and if it occurs will exist only for a short time.

Division 22 (Dust/Powders) – An area in which an explosive mixture is not likely to occur in normal operation and if it occurs will exist only for a short time.
