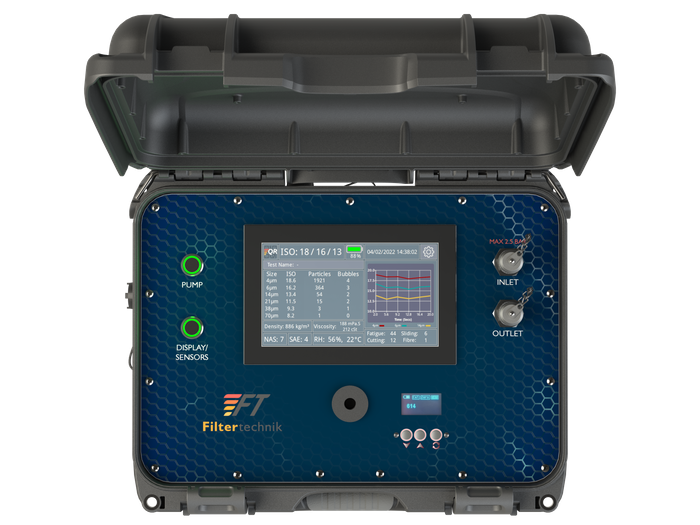

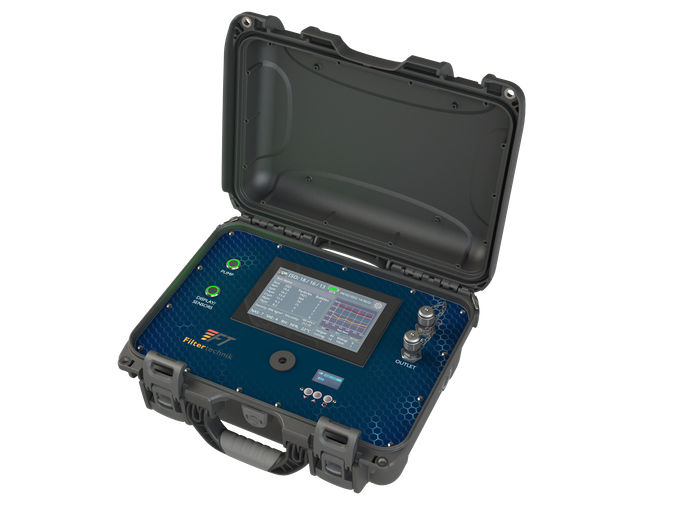

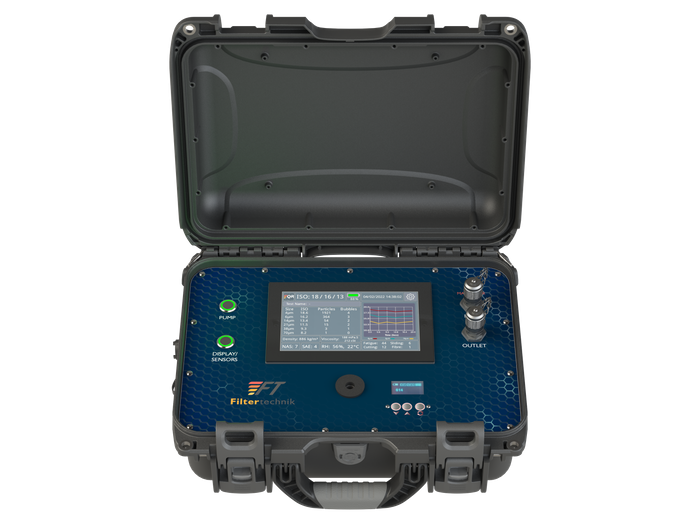

Particle Pal Plus

Harnessing the power of proven digital imaging particle counting with the addition of a Water Content sensor

We've embedded the latest in particle counting technology into our new Particle Pal Plus series.
Giving ISO 11171 counts as well as 4, 6, 14, 21, 38 & 70-micron sizing and bubble elimination. Digital imaging, combined with advanced algorithms, sorts particles into fatigue wear, cutting wear and sliding wear categories to give root cause analysis. This powerful technology, when coupled with an additional sensor for measuring water content gives unprecedented, on-the-spot insight into the condition of your oil.
Bubbles are counted and removed from ISO counts.  Digital imaging particle counting also has the benefit of not being affected by phantom particles/oil additive packages which is a drawback with Laser counters.  Water is displayed as % RH (Relative Humidity).
