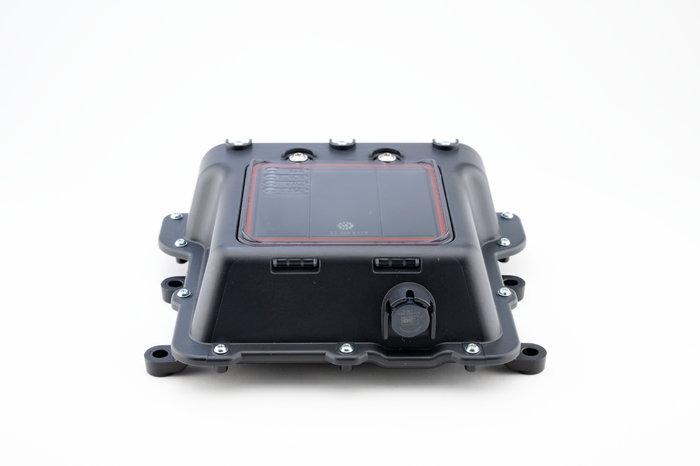

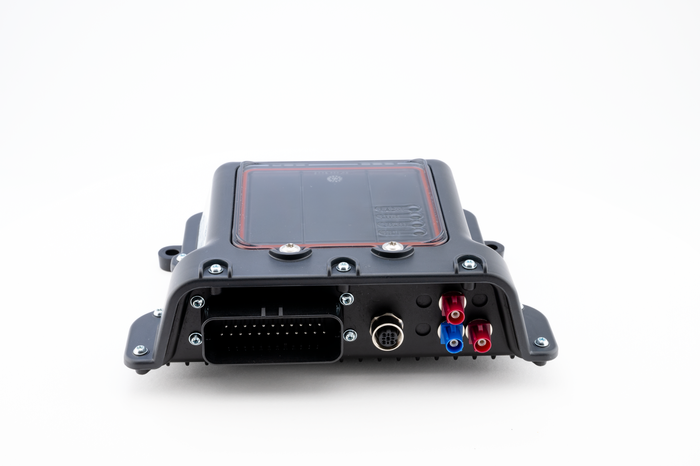

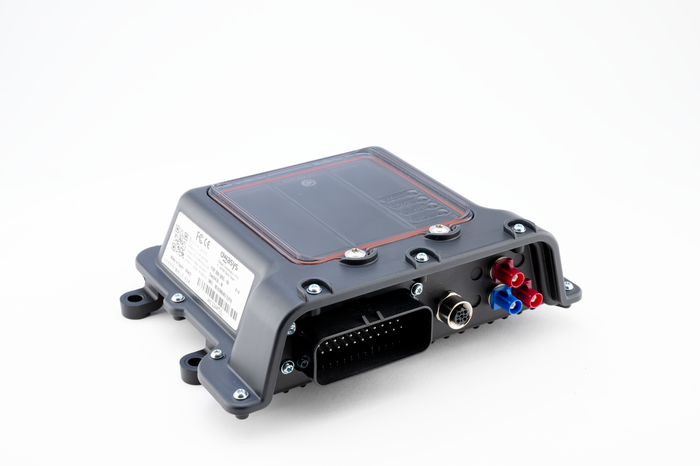

owa5X

The owa5X is Owasys’ most powerful and robust IoT Gateway, engineered specifically for the extreme conditions of the mining, construction, and off-highway sectors. As a quad-core Open Linux platform, it provides the raw processing power and military-grade durability required to drive automation, fleet management, and real-time safety at the edge.

Engineering Excellence in Every Detail

• Elite Edge Computing: Powered by the i.MX8 M Plus Quad A53 (64-bit) at 1.6GHz, featuring an optional Neuro Processing Unit (NPU) for on-site AI and machine learning applications.

• Built for the Pit: Encased in a glass-reinforced polyester enclosure with an IP67 / IP6K9K rating. It is fully dust-tight and resistant to high-pressure, high-temperature steam cleaning.

• Deep Machine Integration: Equipped with up to 4 CAN FD interfaces, allowing for comprehensive data collection from haul trucks, excavators, and drilling rigs simultaneously.

• Global Connectivity: Seamless communication via Global LTE Cat 4 (with 3G/2G fallback), Wi-Fi 802.11ac, and Bluetooth 5.2.

• Precision Positioning: High-accuracy concurrent GNSS (GPS, GLONASS, Galileo, BeiDou) with Dead Reckoning options for underground or obstructed environments.
