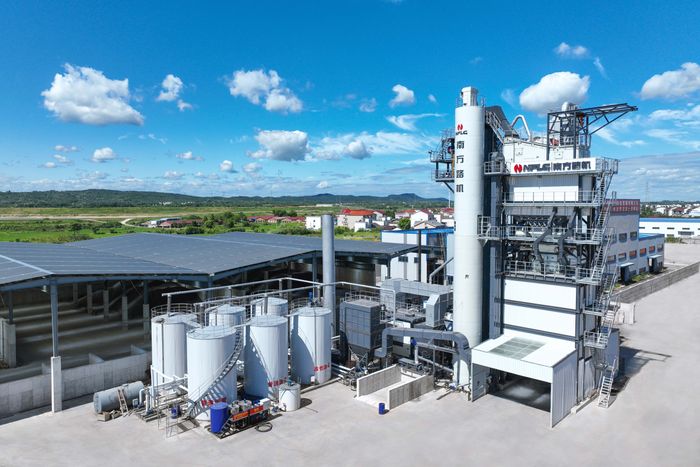

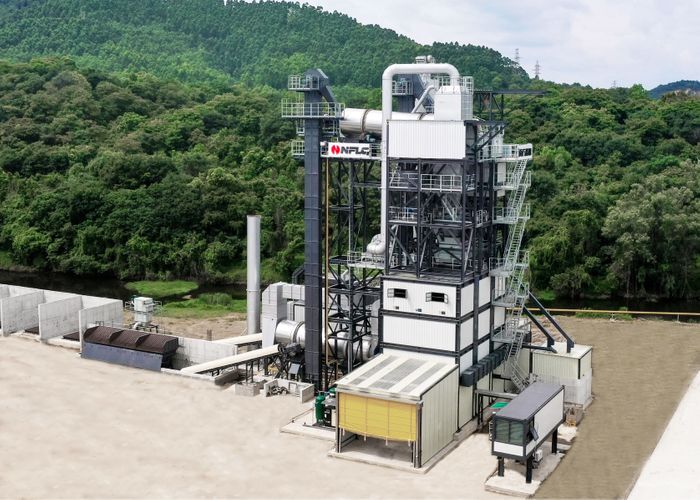

NFLG LBGZ3000 Integrated Asphalt Batching Plant

Model

LBGZ3000

Quantity*capacity (cold aggregate feeders-full grounded)

5×15m³

Quantity*capacity (cold recyclables feeders-half grounded)

2×9m³

Drying drum dimensions: diameter*length

2.5m×10m

Recycling drying drum dimensions:diameter*length

2.2m×10m

Maximum drying capacity at 5% moisture

240t/h

Maximum recycling drying capacity at 3% moisture

130t/h

Fuels

light oil/heavy oil/natural gas (optional)

Fuel consumption

≤7.0Nm³/t(Natural Gas)

Static weighing accuracy

Bitumen≤±0.2%,Filler≤±0.2%, Aggregate≤±0.4%

Dynamic weighing accuracy

Bitumen≤±1.5%, Filler≤±2.0%, Aggregate≤±2.5%

Filter

Grade-1 gravity dust removal+Grade-2 bag filter dust removal

Mixer capacity

4t

Mixing method

Horizontal twin-shaft compulsory mixing

Hot mix storage bin

28m³+33m³

Control system

Cloud interconnection,dual-computer synchronous control system

Rated capacity

240t/h
