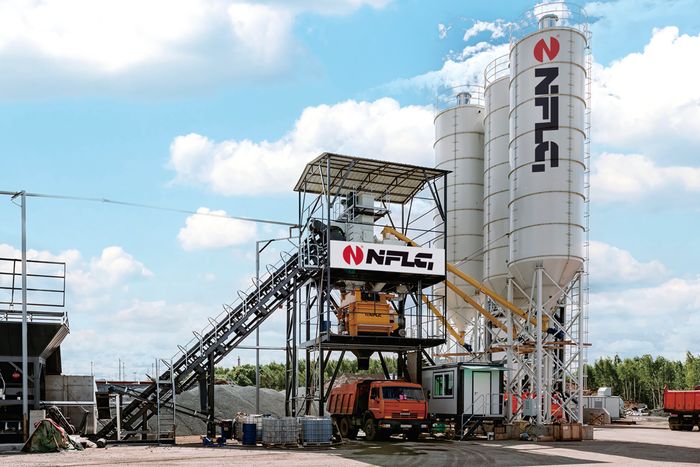

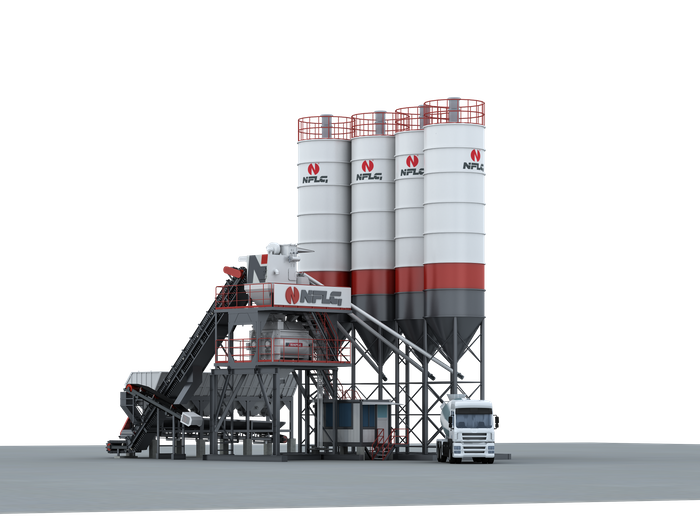

NFLG HZS150M Concrete Batching Plant

Technical Specifications

Theoretical Production Rate (m³/h)

115

Mixer

(Horizontal Twin Shaft)

Model

JS2500

Power (kW)

45×2

Discharge Volume (L)

2500

Aggregate Particle Size (mm)

≤80

Batching Station

(Steel Structure Hopper)

Hopper Volume (m³)

15×4

Aggregate Belt Conveyor

Flat Belt Width

B800

Power

15kW

Inclined Belt Conveyor

Plain Belt Width

B800

Power

22kW

Weighing Range & Accuracy

Aggregate Scale (kg)

2×（900-3000）±2%

Sand Scale (kg)

2×（600-2000）±2%

Cement Scale (kg)

（410-1380）±1%

Fly Ash Scale (kg)

（150-500）±1%

Water Scale (kg)

（150-500）±1%

Liquid Admixture Scale (kg)

2×（15-50）±1%
