LINEAR-24 FLOOD

Lazer Lamps Ltd Stand: PD27
  • LINEAR-24 FLOOD
  • LINEAR-24 FLOOD
LINEAR-24 FLOOD LINEAR-24 FLOOD

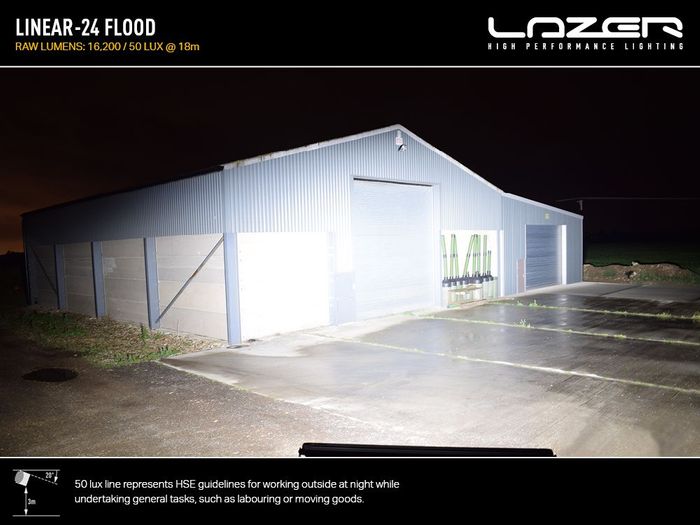

Adopting the same high-output LED arrangement as found in our Linear Elite range, the Linear-24 Flood produces 16,200 raw lumen, and which combined with a customised assembly of ultra-reflective, vacuum-metallised optics, delivers ‘zonal’ lighting perfectly aligned to work cabs, whether mining or construction, forestry or agriculture. On the one hand the high intensity lighting provides a simply unmatched level of illumination in the immediate area in front of the cab, while the length of the light bar itself enables a spread of light to the sides which makes for a safer and more productive work environment. At 5000 kelvin, the colour temperature of the light is also proven to improve sharpness and definition of the immediate surroundings, while also being comfortable to operate with for longer periods of time.

Superior lighting performance aside, the Linear-24 Flood offers a number of other benefits over more traditional work light solutions. With a power consumption rating of 168W, the lamp provides for a more straightforward installation than multiple smaller lamps, to achieve a similar level of light output (the lamp utilises 2-pin Deutsch connector). Reduced fitting time is one immediate advantage, alongside reduced ongoing maintenance time and cost. Fitting a single, low-profile light bar also has the benefit of being less susceptible to misalignment or getting damaged.

Product Features

  • High output work light for industrial applications.
  • Utilises the latest, highly efficient LED technology.
  • Customised arrangement of vacuum-metallised optics delivers ‘zonal’ lighting.
  • Light output optimised for exceptional levels of illumination in immediate (<20m) working environment.
  • Colour temperature - 5000 kelvin.
  • Supplied with stainless steel, side mounting brackets.
  • Electronic thermal management
  • ‘Unbreakable’ polycarbonate lens
  • IP68 watertight
  • 2 year warranty (5 year for Automotive/Commercial Fleet applications)
  • Supplied with male/female 2-pin Deutsch connectors
  • Designed & manufactured in Britain
