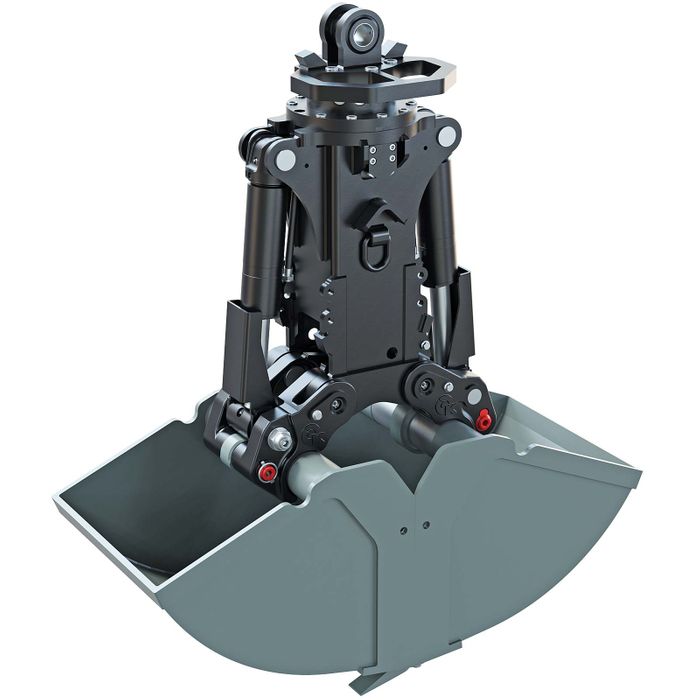

Kinshofer Clamshell Bucket

Kinshofer Clamshell Buckets with Exchangeable Shells are engineered to deliver maximum versatility, efficiency, and durability in excavation and material handling applications. Designed for excavators from 4 to 25 tonnes, these attachments enable operators to adapt quickly to changing job requirements without replacing the entire unit.

At the core of the design is an integrated shell exchange system, allowing operators to swap shells in under five minutes without any hydraulic work. This means the main carrier—including hydraulics, bearings, and structure—remains in place, significantly reducing downtime and improving productivity on site.

A wide range of interchangeable shells is available, including standard excavation shells, rock and timber tines, and specialised configurations such as pipe handling or well shaft applications. This flexibility enables a single attachment to perform multiple tasks efficiently, reducing the need for additional equipment.

Built for durability, the buckets feature cutting edges manufactured from high-strength 500 HB steel, ensuring long service life even in demanding conditions. A generously dimensioned bearing system reduces wear, while protected hydraulic cylinders enhance reliability during continuous operation.

High closing forces provide excellent digging performance and secure material handling, making the buckets suitable for both excavation and precise loading tasks. Combined with robust construction and efficient design, they offer a cost-effective, low-maintenance solution for a wide range of industries.

Typical Applications

• Excavation and trenching
• Landscaping and groundworks
• Material handling and loading
• Pipe and well shaft installation
• Forestry and timber handling
• Railway and infrastructure works
