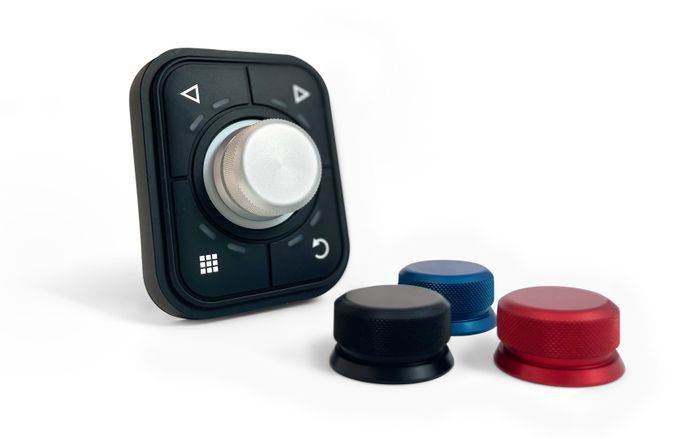

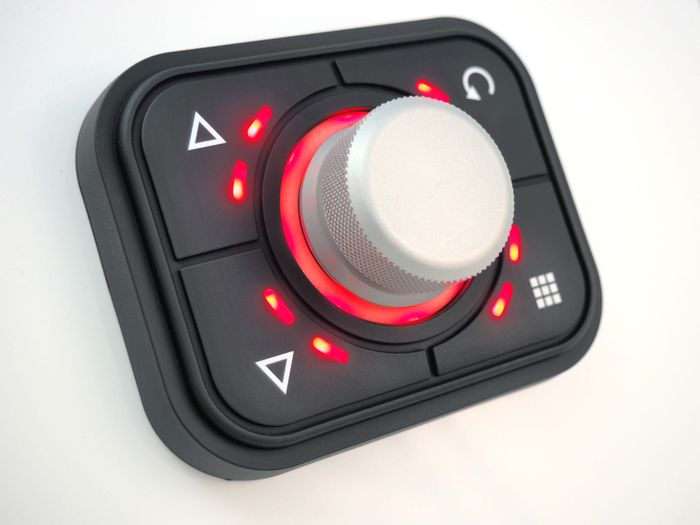

Keypad with 3-in-1 multifunction control knob

Designed for operators who require quick access to multiple commands via a central interface, it is ideal for controlling PRND functions, touchscreens, or machine displays in confined spaces.

Embedded CANopen and J1939 protocols ensure seamless communication with vehicle systems. The PKD’s high level of sealing and UV resistance make it suited for outdoor or off-road use in construction equipment, defense vehicles, or e-mobility platforms.

Its customizable LED ring, anodized knob options, and laser-etched icons enhance both functionality and aesthetics.


General specifications:

• Configurable RGB backlight and LED indicators
• Mounting: Vertical, horizontal, or symmetrical for modular installation
• Actuation life: 3 million operations
• Sealing: IP67 / IP69K
• UV Resistance: UVB 400 hrs
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Supply voltage: 12–24V DC nominal (8–32V DC range
