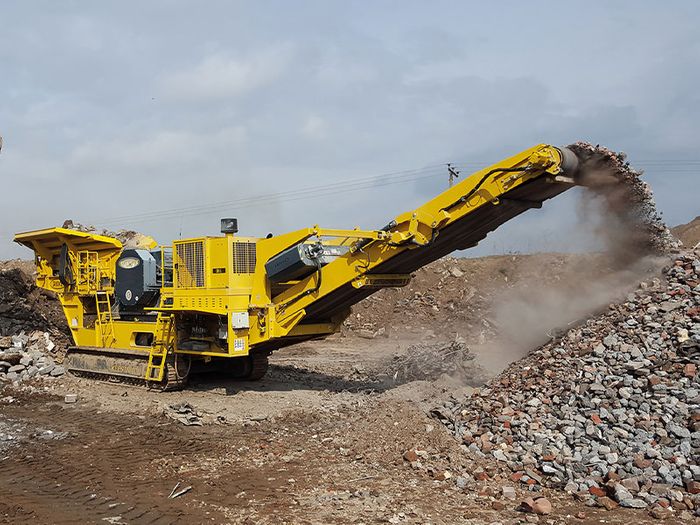

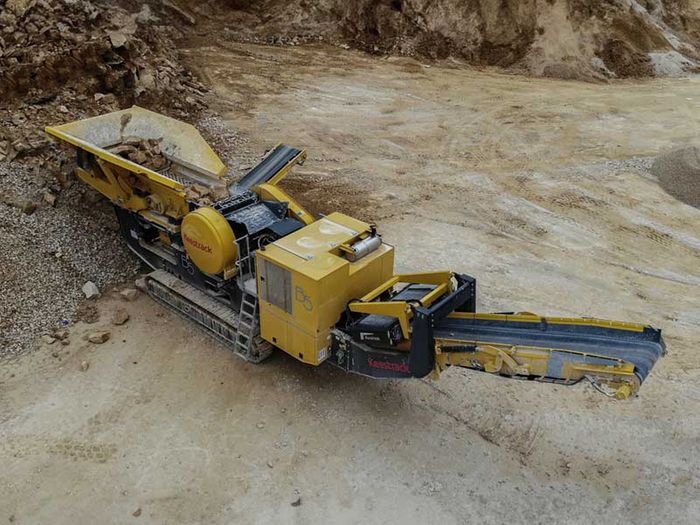

Keestrack B5 Jaw Crusher

Equipped with a fully automatic feed system, hydraulic adjustment, and user-friendly controls with great maintenance access and replacement of wear parts, the B5 Jaw Crusher technology is ideal for applications such as granite, basalt and most medium hard stone, concrete and landfill recycling, primary crushing, quarrying, construction waste, demolition, gravel, and coal.

The B5 Jaw Crusher is designed with a large independent 2-deck vibrating pre-screen, reducing wear and tear on the crushing chamber by removing fines from the material before entering the crusher and ultimately extending the lifespan of the machine. Low emission engine coupled with load-sensing hydraulics reduces fuel consumption by up to 25%, helping minimize the environmental impact of the operation.

Like all jaw crushers of Keestrack, the advanced patented Non-Stop System protects the crusher from uncrushable material by automatically opening of the jaw to allow the obstruction to pass and resetting the C.S.S. back to its original position ensuring a smooth uninterrupted crush.

Performance Highlights


• Independent double deck vibrating pre-screen (1,000 x 2,300 mm (3’ x 8’)
• C.S.S (70 – 175 mm (3” – 7”)
• Intake hopper 5m3
• Smart sequential auto start/stop from remote
• Ability to track while producing
• Hydraulic gap adjustment to prevent clogging
• 2 speed track drive
• Load sensing hydraulic system
• High stroke of the jaw for the excellent throughput
• HB 450 steel hopper and wear plates
• Long pre-screen for less wear
• Higher crushing capacities
• User friendly RELYTEC control panel
• Steel hydraulic piping
