Flexguard Hose Burst Hook & Loop
)
)
)
)
The hook and loop closure system is ideal for retro fits, reducing installation labour time by up to 70%
Technical Description

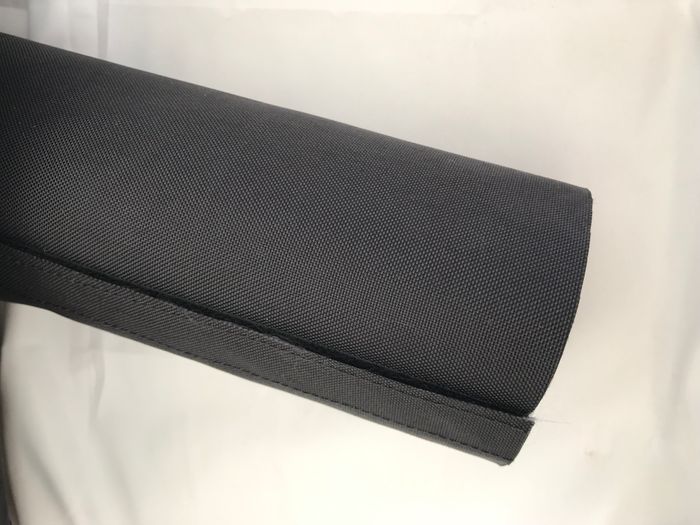

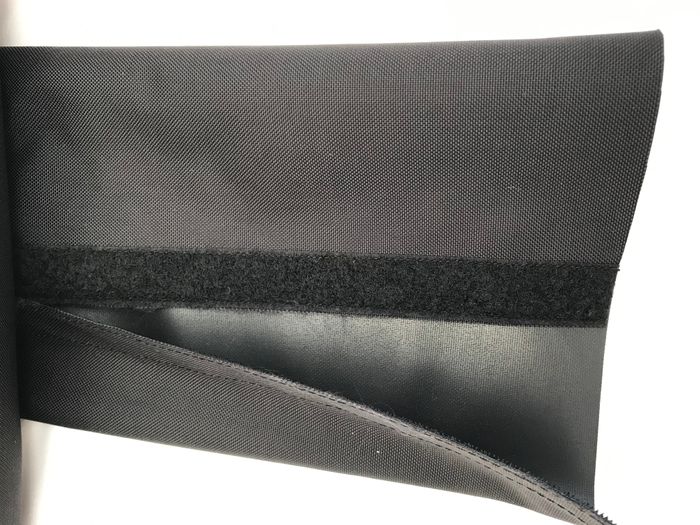

Woven nylon sleeve with hook and loop closure.
Temperature Capabilities
Rated for 180°F (82°C)
Continuous exposure with excellent U.V. protection.
It has excellent moisture resistance which makes it ideal for use outdoors.
Oil and Fluid Resistance
Excellent water and oil resistance.
Dimensional data
Sizes range from 1”ID to 8”ID
Standard lengths available in 75ft and 150ft lengths.
Property data
Mullens Burst PSI: 1500 plus
Hydro Mullens PSI: 120
Abrasion resistance: 100,000 cycles
Tear Test (lbs): Warp 14plus/Fill 14 plus
Cold Crack (40°F): PASS
Installation
Allow tolerance to install over hoses or cable.
