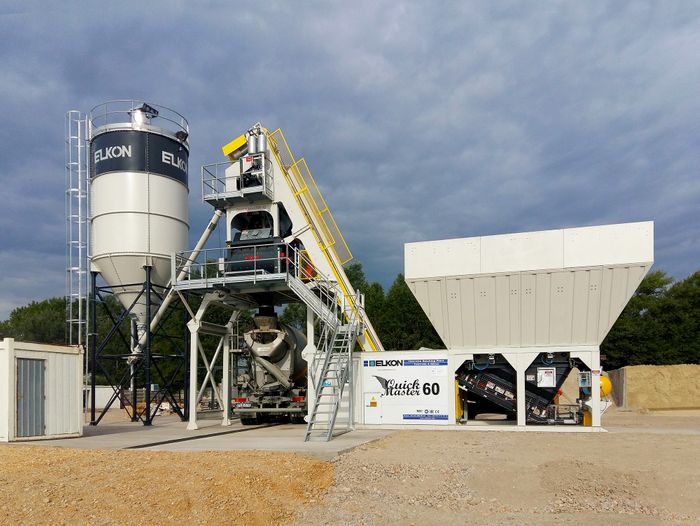

ELKON Elkomix-60 Quick Master Concrete Batching Plant

GREAT ADVANTAGES OF ELKOMIX-60 QUICK MASTER COMPACT CONCRETE BATCHING PLANT

• Main unit can be transported by only 2 units 40’ Open Top Container.
• Low transportation cost.
• It can be installed within only 1 day.
• Easy shifting from one jobsite to another one.
• Less foundation cost.
• Compact design and less installation area.
• Less operational and maintenance costs.
• You can get bigger capacities with less investment cost.

Descriptions of the ELKOMIX-60 QUICK MASTER Compact Concrete Batching Plant

Aggregate storage bins (4x15=60 m3) or (4x20=80 m3)
Aggregate weigh hopper (2500 kg)
Aggregate bucket and skip hoist or transfer conveyor
1500/1000 l. Twinshaft mixer (Brand: ELKON)
Cement weigh hopper (600 kg)
Water weigh hopper (300 kg) (galvanized)
High Pressure Water Distribution System inside Twinshaft Mixer
Additive weigh hopper (2x25 l.) (galvanized)
Compressor
Support Structure
Electronic weigh system and power board
Operator’s cabin and control panel
Automation system (ABB or SIEMENS PLC)
Cement Screw (Ø220) (Brand: ELKON)
Cement Silo (75 tons) (Bolted Panel Construction) (Brand: ELKON)
Cement Silo Reverse Jet Type Filter (Brand: WAM)
Cement Silo Accessories
(Including Max-min. level indicators, fluidizing system, pressure safety valve, max-min. level indicator panel with alarm system)
