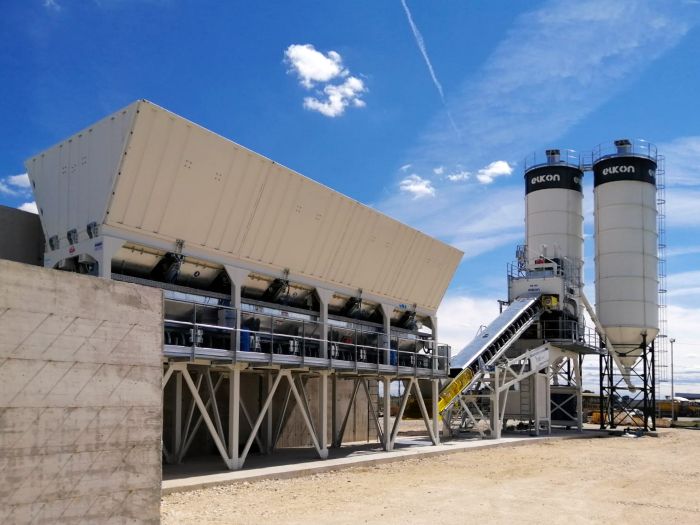

ELKON Elkomix-135 Quick Master Concrete Batching Plant

GREAT ADVANTAGES OF ELKOMIX-135 QUICK MASTER COMPACT CONCRETE BATCHING PLANT

• Heavy duty design.
• Low transportation cost.
• It can be installed within a short time.
• Easy shifting from one jobsite to another one.
• Less foundation cost (no need to make any special foundation for main unit).
• Compact design and less installation area.
• Less operational and maintenance costs.
• You can get bigger capacities with less investment cost.

Description of ELKOMIX-135 QUICK MASTER Compact Concrete Batching Plant

Aggregate inline storage bins (4x20=80 m3)
Aggregate weigh hopper (6600 kg)
Aggregate transfer conveyor or Aggregate bucket and skip hoist
4500/3000 l. Twinshaft mixer (Brand: ELKON)
Cement weigh hopper (1600 kg)
Water weigh hopper (900 kg)
High Pressure Water Distribution System inside Twinshaft Mixer
Additive weigh hopper (2x25 l.) (galvanized)
Compressor
Support Structure
Electronic weigh system and power board
Operator’s cabin and control panel
Automation system (ABB or SIEMENS PLC)
Cement Screw (Ø273) (Brand: ELKON)
Cement Silo (100 tons) (Bolted Panel Construction)
(Brand: ELKON)
Cement Silo Reverse Jet Type Filter (Brand: WAM)
Cement Silo Accessories
(Including Max-min. level indicators, fluidizing system, pressure safety valve, max-min. level indicator panel with alarm system)
