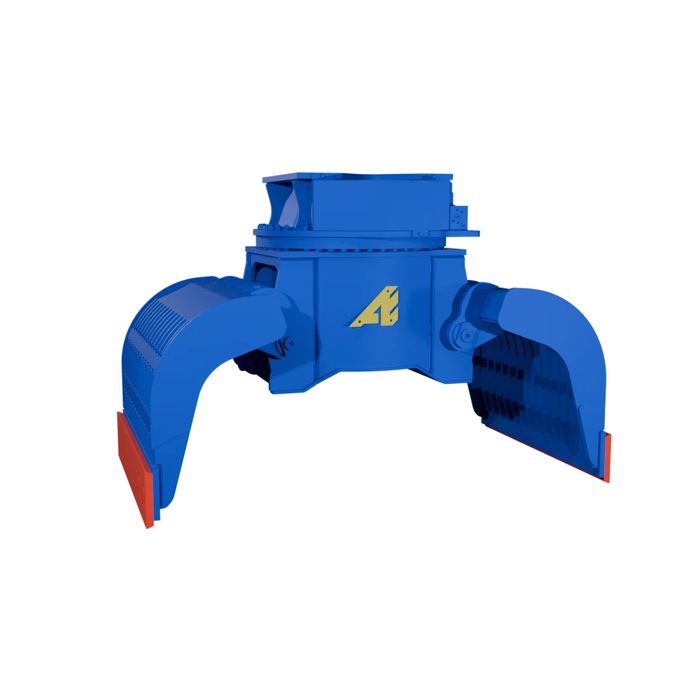

DEMOLITION AND SORTING GRAB

Designed for sorting, demolition, recycling, and handling work, the S grapple offers a powerful, reliable, and fully modular solution for excavators from 2.5 to 90 tons.

Robust structure and high-strength components
Made of high-strength, abrasion-resistant steel from 450HB to 500HB, the grapple is designed for high wear resistance. The inverted V-shaped frame stiffens the assembly, protects the connecting rods, and improves material handling. The joints are bushed with treated pins, and the mechanical stop effectively protects the cylinder(s) from overtravel for greater durability.

Safe rotation and optimized hydraulics
Available with or without rotation, the rotating version integrates rotation with up to three motors and a large-diameter crown, protected by a shielded cover and with a flow limiter. The rotation block withstands the most demanding digging torques. A screw-in pin stop system replaces the pins for improved safety.

Maximum modularity and smart options
Several shell sets are available: BAR (standard bars), ROC (rock fill), or FAP (perforated openwork base), all designed with extra thickness. Additional options allow the clamp to be adapted to every need: Arden Jet (from the S1402) for water spraying, welded sides for holding small materials, rubber between the blade and counterblade for fragile products, and a safety valve.
