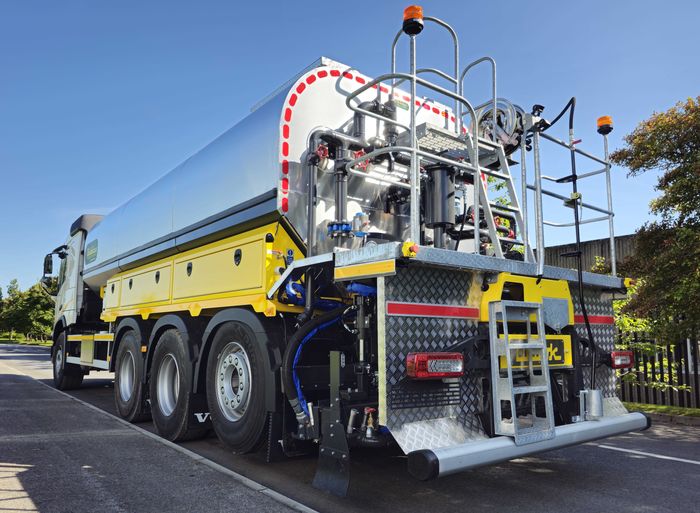

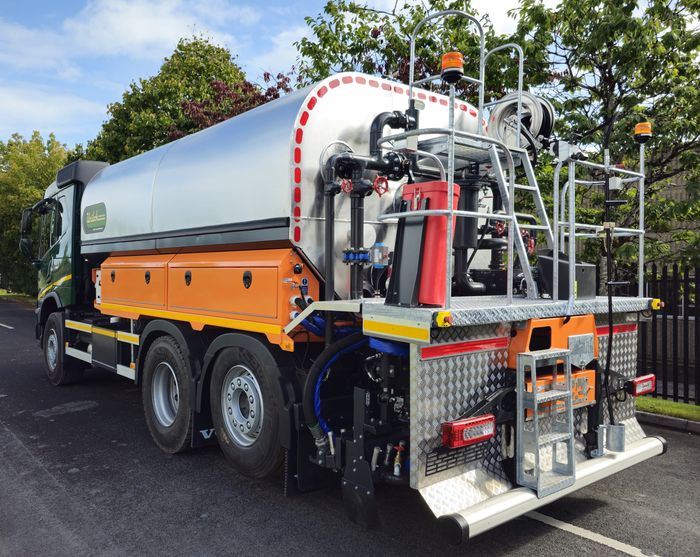

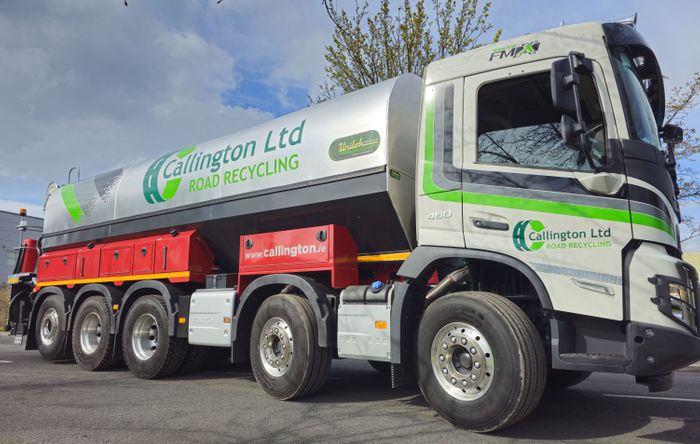

Bitumen Emulsion Sprayer
)
)
)
)
)
)
Tank Capacity: Options available from 3000L to 21000 litres.
Spray bar options:
-
2.4m fixed width
-
Telescopic overall width 4.2m
-
Telescopic overall width 5m
In cab controls: Full cab controls with touch screen and joystick for one man operation.
Automatic heating: Oil burner heating with option of overnight heating.
Pumping: A positive displacement Bitumen pump with integral relief valve with output of up to 800 litres per minute is fitted.
Spraying: Spray bar fitted with slot jets at 100mm centres giving triple overlap of emulsion, jets automatically open/close as the spraying width varies and pressure is automatically controlled to remain constant.
Tank: Fabricated from mild steel to maximum section incorporating anti-surge baffles and heating flue. Insulated with 100mm dense rockwool matting and clad with Aluminium sheeting.
