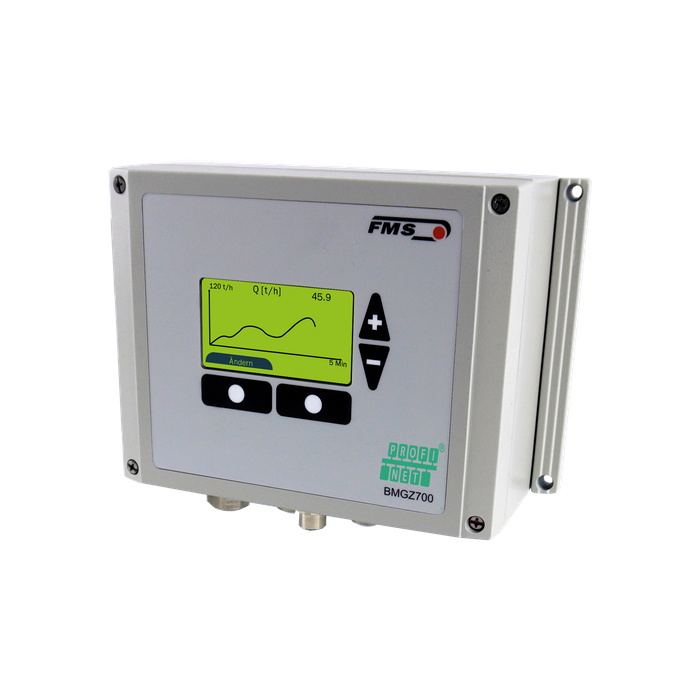

Calibratable electronics for belt scales with Profinet IRT interface
)
The illuminated, graphical display indicates the actual performance, daily amount, total amount and belt speed. Configurable analog and digital outputs are available to connect additional displays or controllers. All data is also provided via the integrated PROFINET IRT interface for easy system integration and data management. The factory-provided integrated web browser allows for quick configuration of the electronics via a regular laptop or pc and can even grant remote access to the system. The electronics of the BMGZ750-series converts and digitalizes the signals of the measuring roller. The electronics subtracts the weight of the measuring roller and the belt (tare) from the actual reading and multiplies the result with the belt speed. The BMGZ750-series features an auto tare function which allows automatic evaluation of the tare value during two turns of the belt.
